Transit Custom Mk1 Scanner Guide

A Transit Custom scanner should help you record a warning and decide what needs investigating. An engine-only reader may be enough for an initial emissions fault, but DPF questions, an equipped AdBlue system or a non-engine warning can call for a more specific Ford-aware route.

This guide covers UK first-generation conventional diesels. It explains how to choose between a generic reader, a Windows FORScan setup and a supported mobile setup, without promising workshop functions or treating a fault code as a repair.

Which UK Transit Custom does this guide cover?

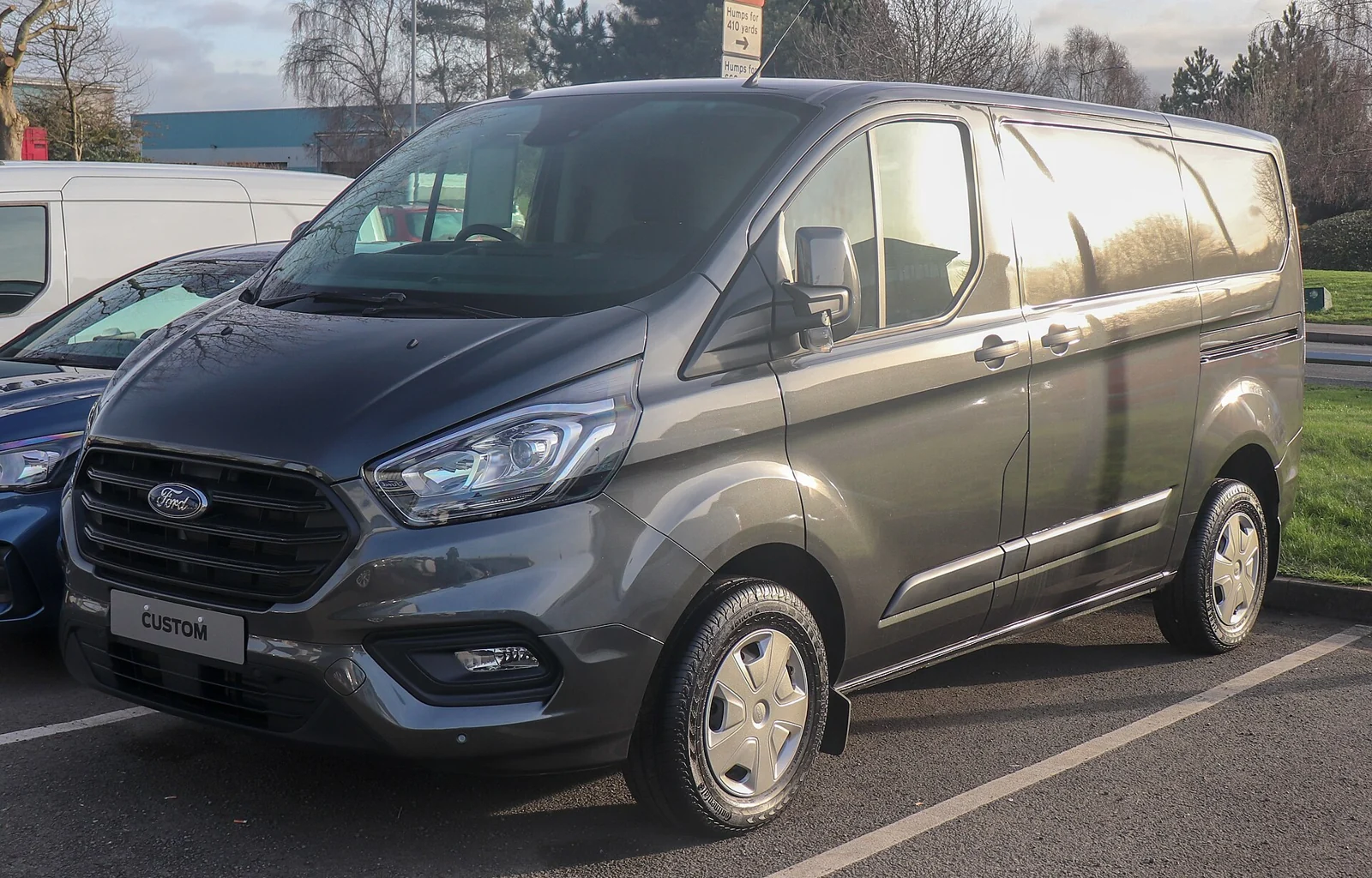

The scope is the first-generation Transit Custom, broadly the UK 2012–2023 generation, with conventional 2.2 TDCi or 2.0 EcoBlue diesel powertrains. It includes front-wheel-drive vans, double-cab-in-vans and Kombi versions where supplied. Check a late registration against the actual generation and build. Facelift styling is not a diagnostic specification.

Identify the engine, build date, emissions equipment and actual gearbox before buying. Sport or MS-RT badges do not confirm a separate diagnostic capability; this guide concerns the original factory diesel powertrain, with additional equipment unverified. Manual and automatic variants must be checked individually.

Excluded are full-size Transit, Transit Connect and Courier, the second-generation/E-Transit Custom, PHEV and mild-hybrid versions, Tourneo-specific passenger equipment, imported specifications and modified emissions or control systems. A camper conversion’s leisure battery, charger and aftermarket wiring are also outside the factory scan scope.

2.2 TDCi and 2.0 EcoBlue need separate checks

Ford’s 2016 engine announcement describes the European change from 2.2 TDCi to 2.0 EcoBlue, SCR using AdBlue on the new engine and a six-speed automatic Custom option arriving later that year. It is a dated product snapshot, not proof of every subsequent UK combination. Do not transfer the full-size Transit’s drivetrain options to a Custom.

The Ford UK manual selector separates builds within the same registration-year choice. For example, the 2017 selector distinguishes April–October 2016, October 2016–November 2017 and later builds. Use the handbook supplied with your own van as the primary reference; an online manual may include equipment your vehicle lacks.

Quick guide to the diagnostic routes

Route	Useful starting point	Device and connection	Access and limits
Reputable generic EOBD/OBD2 reader	Emissions-related engine warning and an initial code record	Handheld reader or supported phone adapter and app	Standard engine codes and data supplied by the car. No assumption of ABS, airbag, body or gearbox coverage.
FORScan for Windows + OBDLink EX	A broader Ford-aware investigation	Supported x86/x64 Windows laptop; USB interface and correct driver	Officially recommended interface route. Additional modules and PIDs depend on the connected Transit Custom Mk1 diesel; no fixed module inventory or service-function promise.
FORScan Lite + OBDLink MX+	Phone or tablet diagnosis	Supported iOS/Android device; compatible Bluetooth interface	Read codes and parameters where supported. Lite does not offer configuration/programming; it is not a duplicate of Windows Extended.

These routes answer different needs. Buy access to the system you need to investigate, rather than the largest advertised list of functions.

What generic OBD2 can tell you

A generic reader uses the emissions-related diagnostic baseline. European emissions rules distinguish this standardised information from a manufacturer’s wider diagnostic services. Depending on what the car supplies and what the reader displays, useful results include stored or pending engine codes, freeze-frame context, readiness monitors and standard live parameters.

Save the complete code, its status and the conditions in which it appeared. A description mentioning a sensor or actuator identifies a monitored condition or circuit; it does not establish which part failed. Supply voltage, wiring, leaks, mechanical problems and another system’s behaviour can all matter to an investigation.

Readiness is also different from a clean bill of health. A monitor that has not completed is not evidence of a healthy system. Clearing diagnostic information can remove context and affect readiness. Do not erase data simply to see whether a warning stays away.

Advertisement — Amazon affiliate link. As an Amazon Associate I earn from qualifying purchases.

Why a warning can remain when the reader says no codes

The first question is what the reader actually queried. An engine-emissions scan is not a full-vehicle scan. A non-engine warning may be recorded elsewhere, while an intermittent condition may not have generated a retrievable code in the service the tool requested. A blank result therefore needs to be read alongside the warning, symptoms and tool’s coverage.

Generic readers can display some manufacturer-specific powertrain codes when the vehicle returns them. It would be wrong to say that every Ford-specific code is invisible to generic OBD2. The useful distinction is between standard engine-emissions access and the extra modules, data and diagnostic services a Ford-aware route may support.

What Ford-aware diagnostics may add

FORScan is designed for Ford diagnostics and can provide additional fault information and parameters through supported vehicle networks. That makes it a sensible route to evaluate when an engine-only reader leaves an important question unanswered.

Additional access remains conditional on the individual car, fitted equipment, interface, software and connection. This guide does not guarantee an ABS, restraint, body, transmission or instrument-cluster module list. Read and record what the connected vehicle actually exposes. A shared platform, adapter protocol list or successful scan of a different Ford is insufficient proof of the same coverage here.

Transit Custom problems: what information is worth saving?

Frequent regeneration, but the reader shows no engine codes

A 2014 2.2 Custom owner discussion asks about frequent regeneration despite no stored fault codes and uncertainty over exhaust readings. A separate early-Custom discussion asks about DPF information and adapter/app choices. These are examples of the questions owners face, not evidence of a common defective part.

Record the pattern: journey length, cold or warm running, idling, warning message and the scanner/app already used. If supported data is available, save the full parameter name, units and the conditions alongside it. A value labelled soot load, differential pressure or exhaust temperature needs a definition for that engine. A forum value from a different build is not a safe pass/fail threshold.

A blank engine-emissions scan does not prove normal regeneration. Equally, changing noises or a single unusual reading does not prove a blocked filter. Diagnose the underlying condition rather than resetting a learned value or buying the sensor named in an app description.

A DPF warning during stop-start van use

The UK-linked Custom DPF manual section distinguishes automatic regeneration from warning conditions and warns about very hot exhaust components and combustible surroundings. Short journeys and prolonged idling can matter. Follow your own handbook’s response to the exact message; an instruction for one build must not be turned into a universal drive-to-clear recipe.

This article does not instruct forced regeneration, provide a scanner regeneration command or verify a filter reset. A handbook feature marked “if equipped” is not proof that FORScan offers the same procedure. Persistent warnings, serious power loss or unsafe symptoms need qualified investigation before repeated cleaning attempts.

AdBlue level warning or AdBlue system fault

First confirm that the van has SCR/AdBlue. The October-2016–November-2017 manual example distinguishes low fluid, an empty tank and a system malfunction, with separate messages and restart implications. Those are different situations. Use the exact message and the handbook’s refill or service instructions; do not assume that adding fluid resolves a system fault.

Save the countdown or warning text and any available fault report before clearing. Reading supported control-unit information may help a garage investigate, but this guide verifies no SCR reset, restart-counter override, sensor calibration or programming function. Never use diagnostic software to defeat an emissions system.

Engine service message, poor starting or intermittent power loss

Begin with vehicle identity, the exact warning and raw codes. Keep current, pending and historic codes distinct. Where supplied, freeze-frame information can show the conditions recorded with a fault; it does not reproduce every event the driver noticed.

An engine-code report cannot certify fuel supply, compression, cooling condition or the health of a timing drive. If the van starts badly, overheats or runs severely unevenly, an apparently tidy scan should not delay mechanical investigation. Tell the garage about recent battery work, repairs and whether the symptom changes with load.

ABS, restraint, parking aid or gearbox warning

Ask which system the first tool actually scanned. The standard emissions route does not establish access to these systems. A Ford-aware report may add useful information if the fitted module responds through the chosen interface. A van without the equipment cannot supply its data.

Identify the actual transmission before applying advice from another Custom. Reading information is separate from clutch learning or transmission adaptation. Brake and restraint warnings require the handbook’s safety response and appropriate specialist work, even when a generic reader reports no codes.

Keep a useful downtime record

For a working van, a repeatable description can be more helpful than a long shopping list of scanner functions. Save the date, mileage, build/engine details, warning photo, scan report and recent maintenance. Note whether the problem happened on a delivery run, after idling or under load, without assuming that the pattern identifies the cause.

For a camper, distinguish a factory vehicle warning from a conversion-system fault. Give the garage the conversion wiring information where relevant. A diagnostic socket does not make an aftermarket inverter, charger or leisure-battery installation part of FORScan’s supported factory coverage.

FORScan setup and interface selection

Windows laptop route

For a broader diagnostic investigation, start with current FORScan for Windows and a genuine OBDLink EX USB interface. FORScan recommends EX for its Windows route, and OBDLink documents USB connectivity and Ford MS-CAN support. That supports the interface choice; its promotional claims do not establish access to every module on every UK car.

Check the computer before ordering: FORScan’s published Windows support specifies x86/x64 and excludes ARM. Install from the official source, follow the interface maker’s driver instructions and confirm that the software identifies the correct vehicle. USB avoids the separate phone-platform and wireless-pairing questions.

Phone or tablet route

OBDLink MX+ with current FORScan Lite is an official candidate route for supported iOS or Android devices. The manufacturer documents the interface’s Bluetooth and device support. Check the exact operating system and app availability. The bundled OBDLink app and FORScan Lite are separate applications; buying the interface does not establish that the FORScan app or its cost is included.

FORScan’s application comparison lists code reading, clearing and parameter reading for Lite, along with some supported tests and service functions. Lite does not provide configuration/programming. Windows Standard already covers ordinary diagnostic categories; an Extended licence is not the entry requirement for simply reading fault codes. A licence or menu entry still does not confirm a particular function on your car.

Checks that matter before purchase

Confirm the exact interface model, genuine supply, current firmware and official support route.
Check software, operating system and interface together; “works with OBD2” is insufficient for the wider Ford route.
Ask a handheld-tool supplier about the exact UK generation, engine, transmission and system you need. General “all systems” language is not a vehicle-specific coverage record.
Check seller returns and UK availability. Manufacturer US prices and warranties are not promises about a UK retailer.

FORScan currently discourages generic adapters marketed as ELM327 because their quality and functionality vary. Its recommended EX/MX+ routes are clearer starting points. Other interfaces, including vLinker FS, need their own current software, firmware and manufacturer checks; they are not approved here from an Amazon search result alone.

How to scan without losing useful evidence

Photograph or write down the warning message and the circumstances: cold or warm, starting or driving, speed/load and any recent repair.
Park safely, check battery condition and follow the tool’s ignition and connection instructions.
Confirm vehicle identity. Save a scan report before clearing anything, including raw codes, status, responding module names and freeze-frame information where available.
Separate confirmed readings from interpretation. Check PID names, units and operating conditions before comparing values.
Investigate with the correct technical information. Use the result to plan checks, rather than ordering the first part named in a code description.
After a justified repair or controlled check, rescan and record which faults return.

Reading a control unit is different from commanding it or changing its stored settings. Do not experiment with output tests, resets, adaptations, coding, programming, keys, immobilisers or replacement-module setup. Brake, steering and restraint work belongs with a suitably equipped specialist. Do not handle or watch a scanner while driving; arrange stationary checks or properly supervised logging.

Love cool cars? Join Unusual Cars Club FREE!

Get forgotten motoring finds, stories, helpful car content and more.

Free to join. No spam. Unsubscribe whenever you like. See our privacy policy.

Scanner routes to consider

Choose a reputable generic reader if your immediate need is an emissions-related engine-code check. Look for raw-code display, freeze-frame and useful live data, a clear support policy and an honest statement of coverage. Spending more makes sense only when it adds access you need.

Choose the Windows FORScan and OBDLink EX route when the question calls for a broader Ford-aware scan and you can use a supported laptop. Choose FORScan Lite and MX+ when mobile convenience matters. Neither setup is a promise of programming capability or a guaranteed cure for a warning.

The linked graphic below and earlier in this article open an Amazon UK search. Results can include unsuitable products. Match the exact interface, application, operating system and vehicle before purchase; appearance in those results is not a compatibility recommendation.

Frequently asked questions

Will a cheap reader diagnose every Transit Custom warning?

No. A generic emissions reader is an initial engine-information route. Establish exact system coverage before expecting ABS, body or transmission information.

Does every Mk1 Custom use AdBlue?

Do not assume so. Confirm the engine and emissions equipment. The 2016 EcoBlue announcement and the cited build-specific manual do not establish identical equipment throughout the generation.

Can FORScan force a DPF regeneration on my van?

No exact command is verified here. Automatic handbook regeneration, an equipped dashboard function and a scanner service procedure are different things. This guide covers choosing a diagnostic reading route.

Can I use a phone for the first scan?

FORScan Lite and genuine MX+ are a documented candidate route on supported iOS/Android devices. Check the current app and interface requirements; do not assume a basic phone adapter supplies broader Ford access.

Will a clear scan prove the engine or camper conversion is healthy?

No. Mechanical condition and aftermarket camper electrics require their own checks. A scan is evidence from responding vehicle systems, not a full inspection.

Related diagnostic guides

Sources and update record

Documentary evidence reviewed: 8 October 2026. Unusual Cars has not personally tested this vehicle or scanner for this guide. Owner discussions identify questions, not fault prevalence or verified repairs. Exact module inventories, parameter availability and service functions remain conditional.

Check current software, interface firmware, app/device support, seller details and your own build-specific handbook before purchase or use.
