An AWD or drive-mode warning on a UK Focus RS Mk3 needs more context than an engine-only code lookup can provide. A generic OBD2 reader is useful for emissions-related engine information, but a clear result there does not establish the diagnostic state of the AWD and other fitted systems.
FORScan is a documented Ford-aware route to evaluate when broader information is needed. OBDLink EX offers a USB route for a suitable Windows computer; OBDLink MX+ offers a wireless option for compatible mobile devices and apps. Confirm the particular RS, software and required access before purchase. No adapter specification guarantees every module, data channel or procedure on every RS build.
Which Focus RS this guide covers
This guide covers the UK 2016–2018 Focus RS Mk3 production family: the 2.3-litre EcoBoost petrol engine, six-speed manual gearbox, five-door hatchback and Ford Performance AWD. Identify the actual build and equipment rather than treating registration year as an exact technical boundary.
The UK Focus RS brochure establishes the engine and AWD context. Ford's European RS introduction describes its electronically controlled rear-drive torque distribution and interactions with other vehicle systems.
Factory editions remain within this guide, with their actual equipment and calibration identified where relevant. Their badges do not establish identical diagnostic functions. Tuned cars or aftermarket powertrain/AWD controllers need additional documentation.
Earlier generations are separate vehicles. Use the Focus RS Mk2 diagnostic guide for the front-drive 2.5-litre car; its diagnostic evidence does not establish Mk3 AWD access. Focus ST and ST-Line cars are outside this page.
Match the scanner to the system you need
| Route | Useful starting point | Device and connection | What it does not establish |
|---|---|---|---|
| Generic OBD2 or EOBD reader | Engine-management warning and available emissions-related engine information | Suitable handheld reader or app/adapter | A complete scan of AWD and other fitted systems |
| FORScan for Windows with OBDLink EX | Ford-aware information where the individual car/setup supports it | Supported x86/x64 Windows computer, USB interface and drivers | Every RS module, data channel, active test or calibration |
| FORScan Lite with OBDLink MX+ | Supported diagnostic reading using a phone or tablet | Compatible iOS/Android device, wireless interface and appropriate app | Desktop function parity or a guaranteed RS procedure list |
| Ford-aware specialist investigation | Persistent AWD warnings, mechanical concerns or specialised work | Workshop with suitable equipment and technical information | A diagnosis based solely on an abbreviated code or a forum repair suggestion |
Two layers of diagnostic information
Focus RS Mk3: match the diagnostic route to the question.
Generic OBD2 / EOBD
- Emissions-related engine fault codes
- Available standard engine data
- Available freeze-frame and readiness information
An engine-only result does not establish the condition of every fitted system.
Ford-aware diagnostics
- AWD and drive-mode warnings
- Complete codes and reporting modules
- Related fitted-system questions
Conditional access: check that the chosen setup supports the information you need on the individual car.
The main diagnostic scanner hub explains the broader selection principle. Choose the required information first, then the device, software and interface that can provide it.
Why AWD warnings need a broader report
Ford describes the RS rear-drive control system using several sensor inputs to manage torque distribution. Its drive modes also involve multiple vehicle systems. That explains why an AWD or drive-mode message deserves investigation with the complete available diagnostic context.
It does not establish that every combination of warnings has the same cause. It also does not prove that FORScan exposes every relevant input or command on every UK RS. A documented interaction in the vehicle's engineering and a confirmed diagnostic-tool capability are different claims.
Begin by preserving the exact message and available scan report. Record what was happening when the warning appeared and any recent work or modifications. If the first scan covered only the engine-emissions layer, make that limitation explicit when arranging further diagnosis.
Keep the full code and reporting module
A UK owner discussion concerning a 2017 RS records P0C01 with different suffixes and confusion about a generic drive-motor description. The report illustrates why an abbreviated lookup can be misleading; it does not establish a universal code definition or repair.
Keep the full code, suffix, reporting module, status and description from the actual report together. Where available, retain the contextual information as well. Ask for interpretation using technical information appropriate to that build and system.
A generic phrase that sounds like an electric drive component is not evidence that the petrol RS has that component. Equally, an online list that points at a rear drive unit does not prove that yours needs replacing. The diagnostic condition and its cause have to be established separately.
Several warnings at once
When AWD, traction, steering or other messages appear together, record the whole sequence rather than selecting one message and guessing a part. The RS's interconnected control functions make the complete picture relevant, but a group of messages is not proof of a single common cause.
Keep a record of known work, equipment changes and the conditions in which the symptoms occurred. A full available report can help a qualified workshop decide where to investigate. Avoid treating a community anecdote about a sensor, battery or controller as an instruction to replace that part.
Warnings affecting safety or driving behaviour need appropriate professional attention. This guide does not give instructions for bypassing faults, disabling systems or forcing a drive mode to become available.
Windows and mobile FORScan choices
The OBDLink EX specification documents a USB interface with automatic Ford CAN switching. Pair it with a supported computer and current drivers/software. Confirm x86/x64 compatibility; an ARM Windows computer should not be assumed suitable.
The OBDLink MX+ specification provides a wireless device route. Check the chosen app and device together. Buying the interface does not mean that FORScan Lite or every licence is included, and the bundled OBDLink app is a separate product.
At application level, Windows Standard and Lite support reading diagnostic information. FORScan's comparison also lists some tests and service functions in Lite, while configuration/programming belongs to Windows Extended. That distinction does not promise any particular AWD service procedure on this RS.
Check current software and licence availability before purchase. The reason to choose a desktop or mobile route should be the required information and compatible equipment, rather than the number of unverified special functions in a seller's list.
What a scan cannot prove about a used RS
Diagnostic information is one part of assessing a used RS. A clean engine scan cannot certify the cooling system, head gasket, clutch or rear drive mechanism. Nor does it establish the suitability of a tune or prove that every relevant warning will remain absent under different conditions.
Combine the available diagnostic record with inspection, service history and appropriate mechanical investigation. Check any campaign or service-history question against the individual VIN through the appropriate Ford route. Do not infer campaign applicability or completion from a generic model-year list or scan result.
For an edition or modified car, establish what is actually fitted. A badge or advertised map name does not prove diagnostic parity, and an adapter should not be bought on the assumption that it can verify a tune.
Love cool cars? Join Unusual Cars Club FREE!
Get forgotten motoring finds, stories, helpful car content and more.
Free to join. No spam. Unsubscribe whenever you like. See our privacy policy.
Preserve information before considering a reset
Save the available report, including each complete code and reporting module, before considering clearing stored information. Keep the dashboard wording and the conditions in which it appeared with that report.
A reset or a temporarily absent warning is not a confirmed repair. If a symptom persists, the useful next step is an investigation that relates the diagnostic record to the vehicle's actual condition. Leave replacement-controller setup, calibration, security functions and safety-system work to people with the correct evidence, equipment and competence.
Focus RS Mk3 FAQs
Can a basic OBD2 reader explain an AWD warning?
An engine-only result cannot establish the diagnostic state of the AWD system. Seek a route with confirmed access to the relevant fitted system on the individual car.
Does an AWD fault mean the rear drive unit has failed?
The dashboard message alone does not establish that conclusion. Preserve the complete diagnostic context and investigate the cause before agreeing to replacement work.
Does FORScan support every RS function?
Broad Ford support is not an exact vehicle-function guarantee. Confirm the car, module, software, interface and required function together.
Should I buy Windows Extended just to read codes?
Reading diagnostic information is distinct from configuration/programming. Check the current app comparison and licence route for the intended job.
Can a clean scan certify a used RS?
No. It complements history and inspection; it does not replace mechanical assessment or establish that every fitted system was queried.
Documentation reviewed 8 October 2026. This guide is based on documentary evidence; Unusual Cars has not independently tested these vehicle/interface combinations.

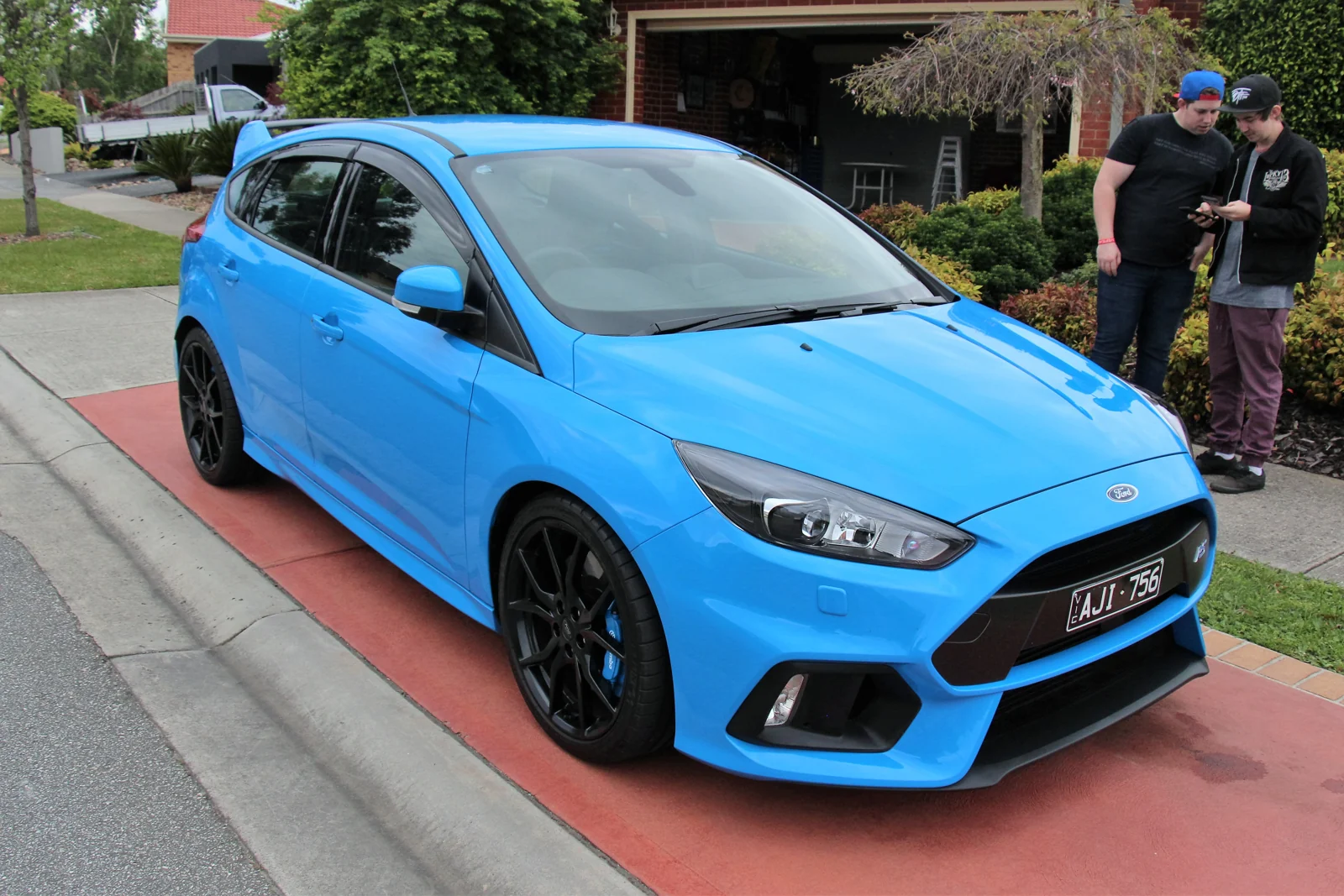

Featured photo: Sicnag / Wikimedia Commons — 2016 Ford Focus MkIII RS (29933423530).jpg. CC BY 2.0. Resized and converted to WebP; image content unchanged. Illustrative model photograph; equipment and market specification may differ.
